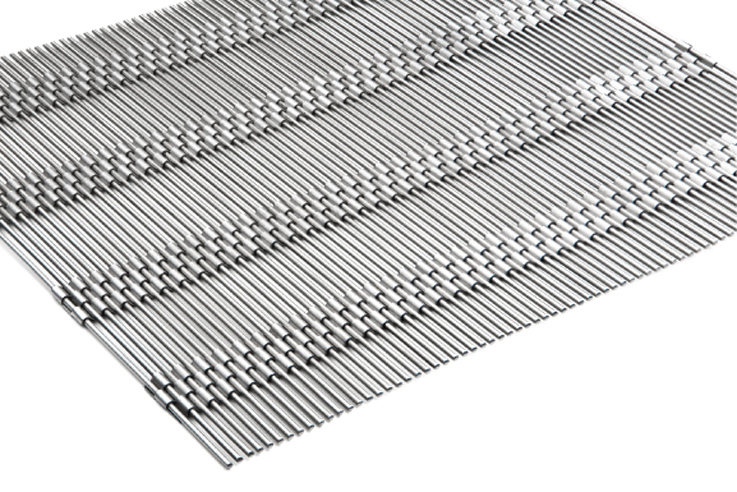

TSUBAKI / SPECIAL Y ROD
Material
Vertical Wire Π Diameter
Horizontal Wire Diameter
Vertical Wire Π Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire Π Diameter
Horizontal Wire Diameter
Vertical Wire Π Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
0.5mm (thickness) by 5.0mm (width)
1.6mm
3pcs flat wire in every 45mm
2.8mm
28.6%
1,200mm (width) by 2,400mm (length) (max width 3,000mm)
8.35kgs / m2
2.65mm
0.5mm (thickness) by 5.0mm (width)
1.6mm
3pcs flat wire in every 45mm
2.8mm
28.6%
1,200mm (width) by 2,400mm (length) (max width 3,000mm)
8.35kgs / m2
2.65mm
Remarks
a) Opening ratio % & Object thickness are nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening ratio % & Object thickness are nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
