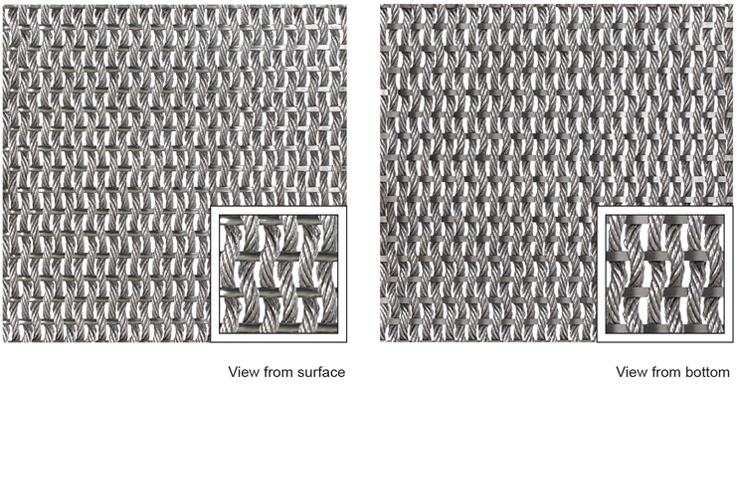

MIYABI 雅 / SUDARE MESH
Material
Vertical Wire* Diameter
Horizontal Wire** Diameter
Veritcal Wire Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire* Diameter
Horizontal Wire** Diameter
Veritcal Wire Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Brass / Stainless Steel Grade SUS304
2.0 mm
1.75 mm (thickness) by 0.6 mm (width)
3.175 mm
6.0 mm
26.2 %
900mm, 1,200mm, 2,500mm, 1,500 (max 2,500mm)
5.2 kg/m2
3.0 mm
* wire cable
** half round wire profile
2.0 mm
1.75 mm (thickness) by 0.6 mm (width)
3.175 mm
6.0 mm
26.2 %
900mm, 1,200mm, 2,500mm, 1,500 (max 2,500mm)
5.2 kg/m2
3.0 mm
* wire cable
** half round wire profile
Remarks
a) Maximum width & length can be customised up to 2.5M x 2.5M (i.e 6.25SQM)
a) Maximum width & length can be customised up to 2.5M x 2.5M (i.e 6.25SQM)
