Architectural Mesh
Industrial Wire Mesh Products
NOZOMl-2 / KS TYPE
Material
Spiral Wire Diameter
Spiral Wire Opening
Standard Width
Weight
Thickness
Spiral Wire Diameter
Spiral Wire Opening
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
1.6 mm
10.0 mm
600mm, 900mm, 1,200mm, 1,500 (max 3,000mm)
4.2 kgs/m2
8.8 mm
1.6 mm
10.0 mm
600mm, 900mm, 1,200mm, 1,500 (max 3,000mm)
4.2 kgs/m2
8.8 mm
Remarks

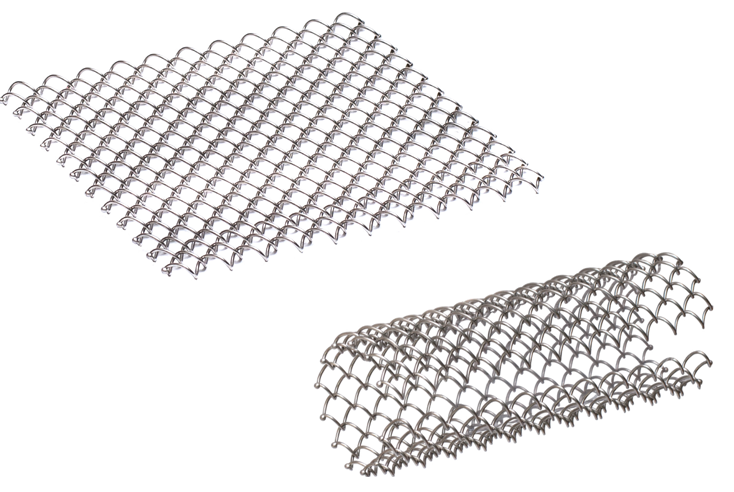

a) The mesh can be folded and make curvy form in length direction
b) The above specification is based on KS-10.0-1.6
c) Gold* colour is available upon request (colour image refer to webpage)
d) There is no limit in the length but advisable to keep maximum length at 1OM due to weight concern
e) Pickling on screen welding edges is available upon request
* By baking colouring method
a) The mesh can be folded and make curvy form in length direction
b) The above specification is based on KS-10.0-1.6
c) Gold* colour is available upon request (colour image refer to webpage)
d) There is no limit in the length but advisable to keep maximum length at 1OM due to weight concern
e) Pickling on screen welding edges is available upon request
* By baking colouring method
