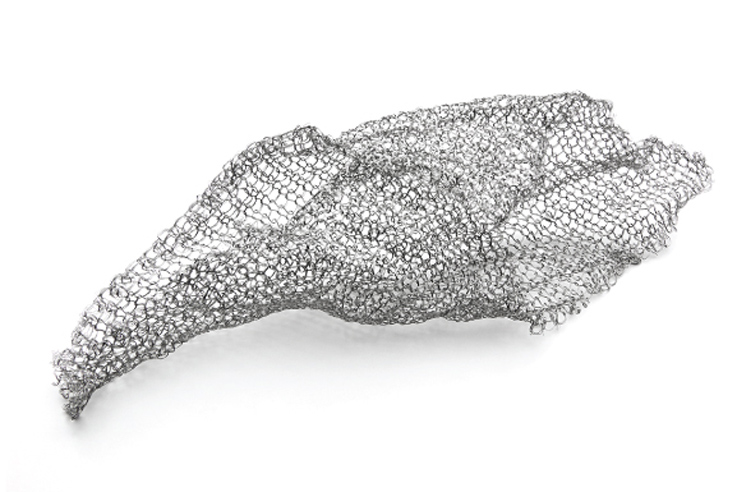

AQUALINE SW216 / KNITTED WIRE MESH
Material
Wire Diameter & Profile
Porosity
Surface Area
Density
Thickness (no. of layers)
Standard size
weight
Nature of product
Wire Diameter & Profile
Porosity
Surface Area
Density
Thickness (no. of layers)
Standard size
weight
Nature of product
Fixing Method
Dispaly or Hanging Freestyle
Affix with using metal Hooks to ceilings
Box-up by glass panel
Stainless Steel
Grade SUS304
0.12mm x 6pcs wire
97.3%
908 m2/m3
216 kgs/m3
2 layers by 6mm height
120,200,300,420mm (width)
1.25kgs/m2
open end sock structural
Grade SUS304
0.12mm x 6pcs wire
97.3%
908 m2/m3
216 kgs/m3
2 layers by 6mm height
120,200,300,420mm (width)
1.25kgs/m2
open end sock structural
Remarks
a) Porosity is nominal value
b) Max width 700mm (+0, -10~20mm)
c) Brass material is available as well
d) Data of above Area & Density are based on 40 layers by 100mm height.
a) Porosity is nominal value
b) Max width 700mm (+0, -10~20mm)
c) Brass material is available as well
d) Data of above Area & Density are based on 40 layers by 100mm height.
