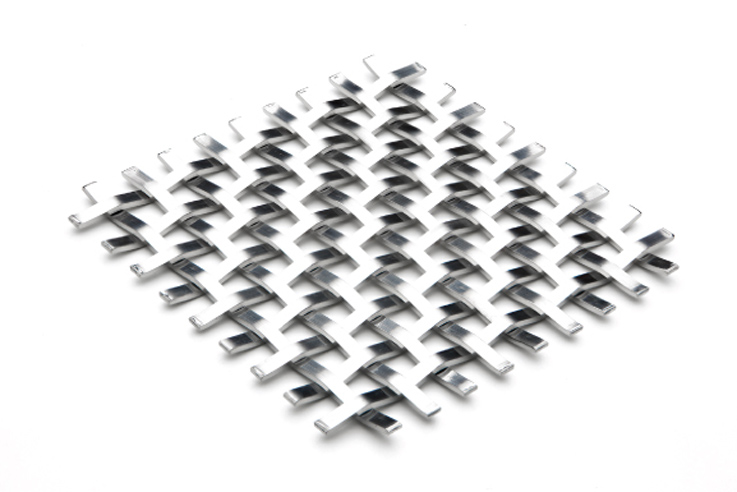

FUU GA 風雅 / SUDARE MESH
Material
Horizontal Wire Π Diameter*
Vertical Wire Π Diameter*
Horizontal Wire Π Pitch
Vertical Wire Π Pitch
Opening Ratio
Standard Width
Weight
Thickness
Horizontal Wire Π Diameter*
Vertical Wire Π Diameter*
Horizontal Wire Π Pitch
Vertical Wire Π Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical and horizontal wire profiles are identical
Fixing Method
Affix with using ready-made frame
Affix with using flat steel bars
Stainless Steel,
Grade SUS304
1.4mm (thickness) by 3.5mm (width)
1.4mm (thickness) by 3.5mm (width)
10mm
10mm
42.25%
900mm, 1,200mm & 1,500mm (max width 1,900mm)
7.8 kgs / m2
3.0mm
1.4mm (thickness) by 3.5mm (width)
1.4mm (thickness) by 3.5mm (width)
10mm
10mm
42.25%
900mm, 1,200mm & 1,500mm (max width 1,900mm)
7.8 kgs / m2
3.0mm
Remarks
a) Opening ratio % is nominal value.
b) Vertical wire = warp wire, Horizontal wire = weft wire.
c) Max width & length can be produced is 1.9M * 1.9M. (i.e 3.61 SQM).
a) Opening ratio % is nominal value.
b) Vertical wire = warp wire, Horizontal wire = weft wire.
c) Max width & length can be produced is 1.9M * 1.9M. (i.e 3.61 SQM).
