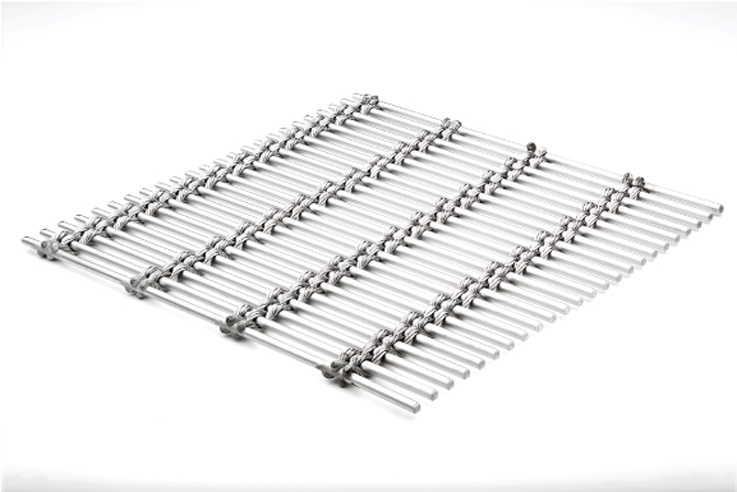

FUU RIN 風鈴 / SUDARE MESH
Material
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Vertical Wire ∞ Diameter
Horizontal Wire Diameter
Vertical Wire ∞ Pitch
Horizontal Wire Pitch
Opening Ratio
Standard Width
Weight
Thickness
Stainless Steel,
Grade SUS304
2.0mm
3.0mm
4 pcs wire rope in every 50.0mm
6mm (4.2mesh)
40.0%
900mm, 1,200mm, 1,500mm (max 4,000mm)
11.2kgs / m2
7.0mm
2.0mm
3.0mm
4 pcs wire rope in every 50.0mm
6mm (4.2mesh)
40.0%
900mm, 1,200mm, 1,500mm (max 4,000mm)
11.2kgs / m2
7.0mm
Remarks
a) Opening ratio % is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening ratio % is nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
