KIMITSU / EXPANDED METAL RAISED*

Material
Size of SWM
Size of LWM
Strand Width
Thickness**

Opening Ratio
Standard Size

Weight
Thickness

Low carbon steel/galvanized
23.44mm
50.8mm (in 2 inches)
3.8mm
3.4mm (** standard thickness is 1.5, 2.0, 3.0, 3.2 & 5.0mm)
68.0%
LWM 2,400mm by SWM 1,220mm (max LWM 3,100mm)
8.5kgs / m2
7.85mm


Affix with using ready-made frame
Affix with using flat steel bars

Remarks
a) Opening ratio % & Object thickness are nominal value.

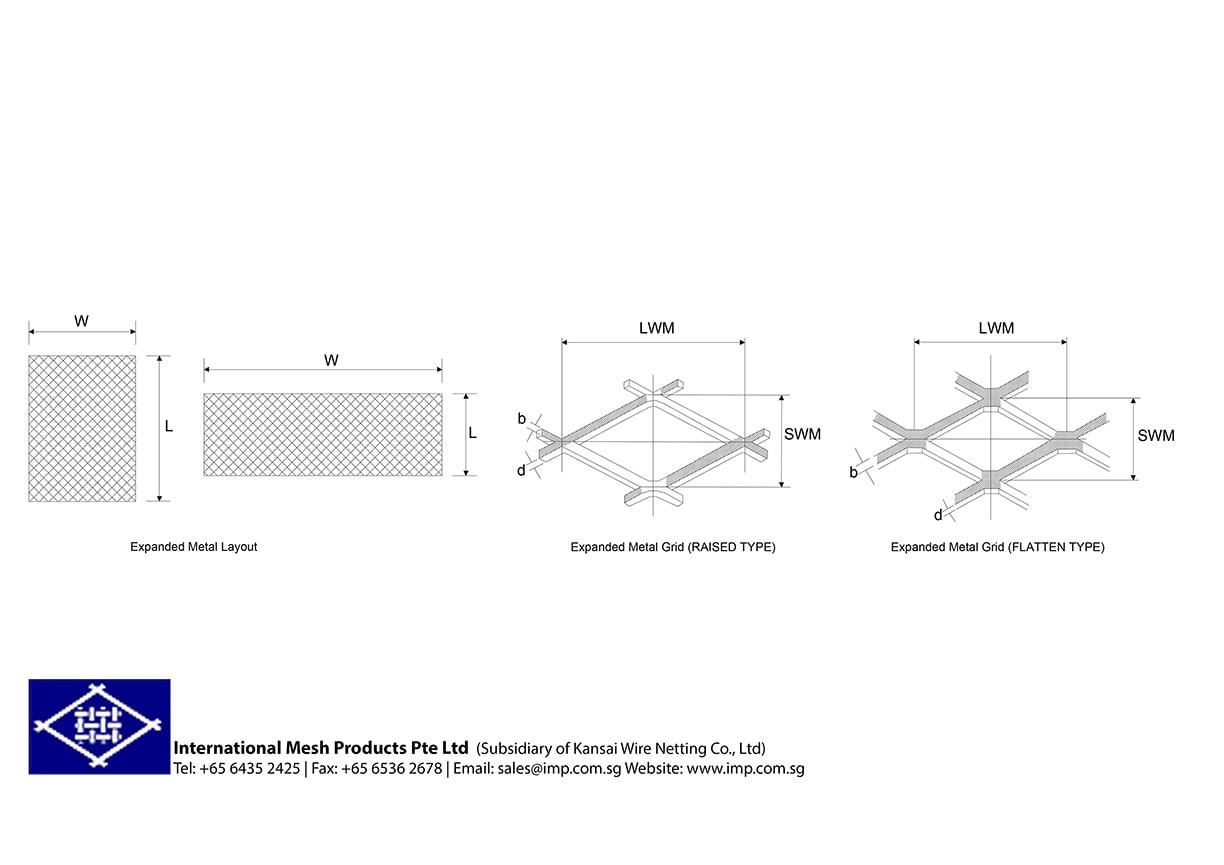

b) Photo shown is RAISED TYPE, available in FLATTEN TYPE as well.
c) The Long Way (LWM) of the mesh opening is uniform, and the Short Way (SWM) is approximate only
   and is subject to variation depending on the strand width and material thickness.
   However, it may not generally alter the overall mesh type during manufacture.
