HIRA-ORI / WIRE MESH PLAIN WEAVE

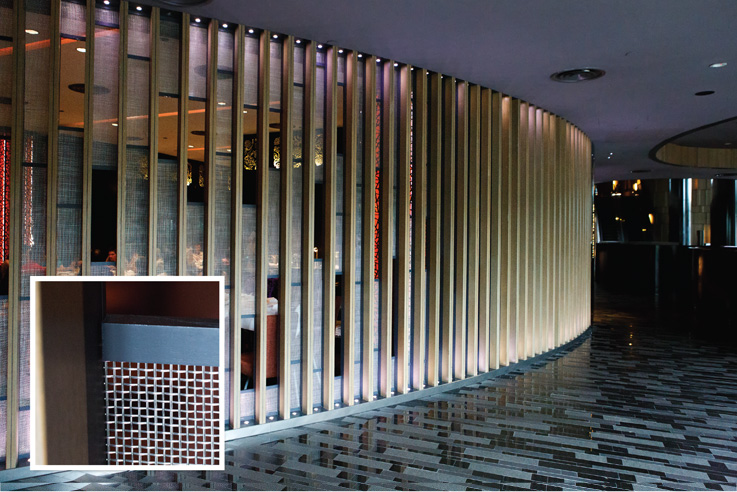

Note: Restaurant at Crowne Plaza Changi Airport Terminal 3 where wire mesh not supplied by us but similar to our Hira-Ori was used.
Material
Vertical Wire Diameter
Horizontal Wire Diameter
Vertical Wire Pitch
Horizontal Wire Pitch
Opening Area
Standard Width
Weight
Thickness
Vertical Wire Diameter
Horizontal Wire Diameter
Vertical Wire Pitch
Horizontal Wire Pitch
Opening Area
Standard Width
Weight
Thickness
Stainless Steel, Grade SUS304
0.85mm
0.85mm
3.6mm (7 mesh)
3.6mm (7 mesh)
59.0%
1,000mm, 1,220mm, 1,320mm, 1,524 (max 1,600mm)
2.63kgs / m2
1.70mm
0.85mm
0.85mm
3.6mm (7 mesh)
3.6mm (7 mesh)
59.0%
1,000mm, 1,220mm, 1,320mm, 1,524 (max 1,600mm)
2.63kgs / m2
1.70mm
Remarks
a) Opening area & thickness are all nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
a) Opening area & thickness are all nominal value
b) Vertical wire = warp wire , Horizontal wire = weft wire
